Description

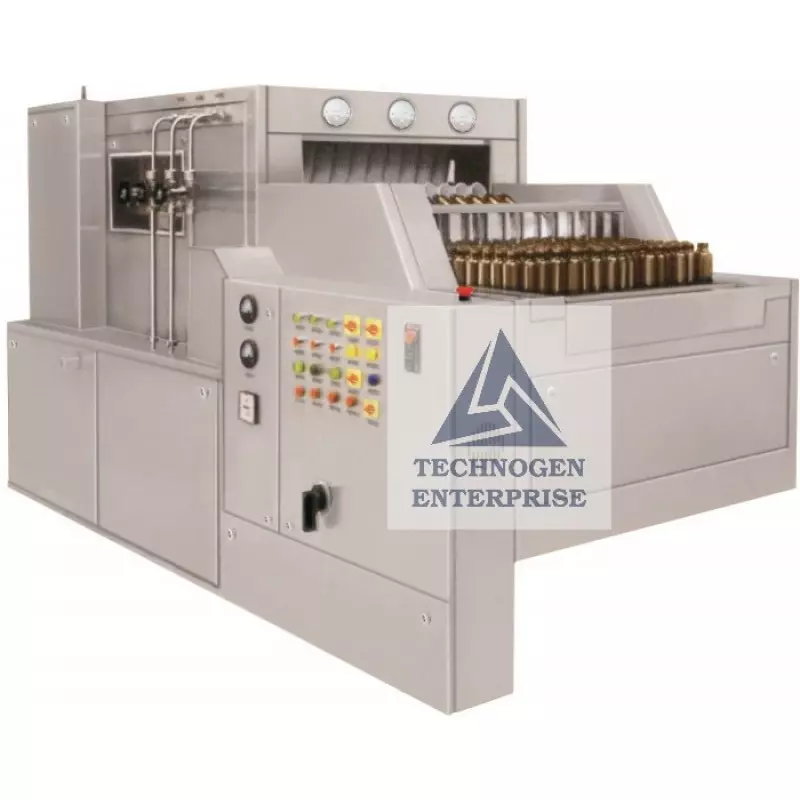

Automatic Tunnel Type Linear Bottle Washing Machine Details
Technogen Enterprise is Manufacturer , Supplier & Exporter of Automatic Tunnel Type Linear Bottle washing Machine. This machine is used to wash internal and External Surface of the bottle in linear intermittant motion. Machine can easily wash the Round Bottles (Glass / Pet / HDPE/ Plastic etc) used in variety of industries like pharmaceutical , cosmetic , pesticide etc.
The Machine is equipped with 2 NOS of AISI 316L Tank with pump ( 1 Each for Re-circulation Water, DM Water ). Automatic Tunnel Type Linear Bottle washing Machine is inbuilt with 5 Internal Washes & 2 NOS of External Washes in order to ensure the complete internal & external cleaning of Bottle. Further, Washing Sequence can be customized as per the clients requirement. Our range of model can deliver the speed from 50 Bottles per minute to 300 Bottles per minute.
SALIENT FEATURES:
- CGMP Model.
- Stainless Steel 304 make Machine body and door.
- High Pressure Spraying Nozzles ensures perfect Bottle wash.
- Washing chamber having various spray zones and Water spray duration is electrically controlled.
- Washing Cycle & Washing Timing can be adjusted depending upon the requirement.
- 2 NOS AISI 316L Tanks & Pumps (1 No. each for Re-circulation Water, DM Water) & are positioned suitable for easy maintenance.
- 3 NOS of Glycrine filled Pressure Gauges. (1 No. each for DM, Re-cycled Water & Compressed Air)
- Sensorless Variable Freqeuncy Drive for Speed Control
- Two Nos of Emergency switch are fitted at in feed and out feed side.
- All electrical and brought out items are of CE certified.
TECHNICAL SPECIFICATION:
| Model | TGBW-60T | TGBW-120T | TGBW-240T | TGBW-300T |
| Speed | Up to 60 Bottle Per Minute | Up to 120 Bottle Per Minute | Up to 240 Bottle Per Minute | Up to 300 Bottle Per Minute |
| Conveyor Height | 750 ± 50 mm | |||
| Working direction | Left to Right | |||
| Washing Sequence | 5 internal Washes & 2 External Washes | |||
| Tanks | 2 nos of AISI 316L tanks ( 1 Each for Re-circulation Water, DM Water) | |||
| Pressure Gauge | 3 NOS of Glycrine filled Pressure Gauges. (1 No. each for DM, Re-cycled Water & Compressed Air) | |||
| No of Filter | 3 nos each for recycled water , DM Water & Compressed Air | |||
| Air consumption | 30 to 50 CFM @ 3 to 4 bar Pressure | |||
| Fresh Water consumption | 600 to 900 Ltrs/Hours | |||
| DM water Consumption | 600 to 900 Ltrs/Hours | |||
| Power Supply | 3 KW to 6 KW depending upon Model | |||
| Electrical Connection | 415V, 3 Phase , 50 HZ ,4 core wire | |||
| Input Specifications | · 30 ml to 200 ml Bottles without any major change parts.
· Accommodate different sizes of bottles with the help of minimal change parts. · Special Customized machines are available for other size and type of containers on request |
|||
ADD ON FEATURES:
- PLC -HMI Interface
- Drying Station
- In-built pre-inspection Unit
- Bottle Lifting Device – At In feed
