Automatic Double Head Auger Powder Filling Machine Details
Technogen Enterprise is a trusted manufacturer, supplier, and exporter of servo driven automatic double head auger powder filling machines. Based in Ahmedabad, Gujarat, India, they specialize in filling packages with different types of powder quickly and efficiently.
With our endeavor to offer the next generation technology in offering the latest Auger filler, we introduce Automatic Double head Auger powder Filler which is available for sales to the various industries at reasonable price. The machine can deliver production speed of 60 Bottle per minute. The Machine filling range is 5 GMS and 1000 GMS filling. It is used to fill powders, dry powders & micro granules.
Technogen Enterprise is manufacturer, exporter and supplier of Automatic Double Head Auger Powder filling machine Model TGAPF-60 in Ahmedabad, Gujarat, India. This is a dual head automatic auger filler for high speed Powder filling application. The Machine feature superior synchronization between filling and indexing system.

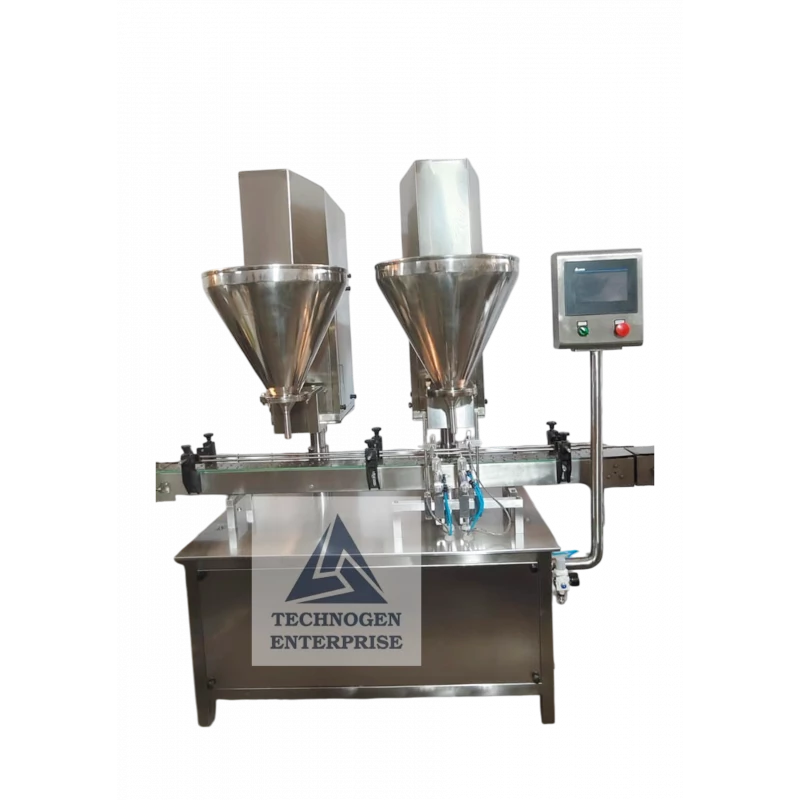

The Double head Auger powder filler comes with 2 filling head, 2 Hopper, product transport conveyor to get higher production speed. Contact parts are made from stainless steel 316L material. This machine works on principal of Augumetric volumetric filling principal. Auger screw rotation is controlled through high powered Servo Motor. Servo motor is controlled using Servo driver and PLC. The Filling Material is metered through controlling the revolution of the Auger screw.
SALIENT FEATURES:
- CGMP and compact model
- Contact parts in AISI 316L.
- Machine is constructed in AISI 304 with a top plate is mild steel
- Works on Auger metric principle and auger rotation is controlled using Servo motor
- No Bottle–No Fill Mechanism.
- Bottle indexing is done using star wheel which results in to air saving thus utility
- Weight variation: Less than +/- 2.0% subject to the powder nature, fill weight & speed.
- least change parts, hence quick changeover.
- No Change Part need for change in bottle height
- Virtually no powder loss
- Variable speed for the slat conveyor–The speed of the slat conveyor can be controlled with A/C variable motor, thus falling of bottles is eliminated.
- No dripping–drip control mechanism to control dripping after completion of dosing.
- Lower cost of production–Since labor, space and support facilities is minimal.
- Simple operation–easy to run & maintain
- maintenance free machine
- High operational comfort–Since parts are accessible and controls are located.
- Long life–sturdy design, sophisticated manufacturing techniques and better material of construction ensures long and trouble-free life.
- Ease of maintenance–because of less of moving parts.
TECHNICAL SPECIFICATION:
| Machine Name | Automatic Double Head Auger Powder Filling Machine |
| Model No | TGAPF-60 |
| Machine Direction | Left to Right |
| Automation Grade | Automatic |
| Machine usage | To fill powder in Bottle & Jar |
| Brand | Technogen Enterprise |
| Filling Technology | Servo Based Auger Screw Rotation |
| Production Speed | 50 to 60 Bottle per minute for 5 GMS and 10 GMS filling
Note: Output subject to powder properties |
| Machine Speed Variation | Through Variable frequency Drive |
| Machine controlling | Though Programmable logic Controller (PLC) |
| Machine operating | Though Human Machine Interface (HMI) |
| Number of Powder Filling head | 2 No. |
| Fill Volume (Range) | 5 Grams to 1000 Grams |
| Bottle Diameter | 25 MM To 80 MM MAX. |
| Filling Accuracy | +/- 2.0 % subject to the powder nature, fill weight & speed. |
| Number of Hopper | 2 NOS |
| Hopper Capacity | 18 Liter |
| Power Consumption | 1 KW |
| Power Connection | 440 VAC, 50 Hz ,3PH + N |
| Net Weight | 375 Kgs. |
| Gross Weight | 600 Kgs. |
| Machine Dimension
(L X W X H ) MM |
2130 mm X 850 mm X 1600 mm |
| Noise level | Less than 70 DB |
| Machine Warranty | 1 year from the date of dispatch |
| Country of Origin | India |
OPTIONAL ITEMS:
- Dust Extraction System
- Acrylic Safety Cabinet.
- Non Free flow Powder Feeding System.
- PLC – HMI Interface with Audit trail facility
