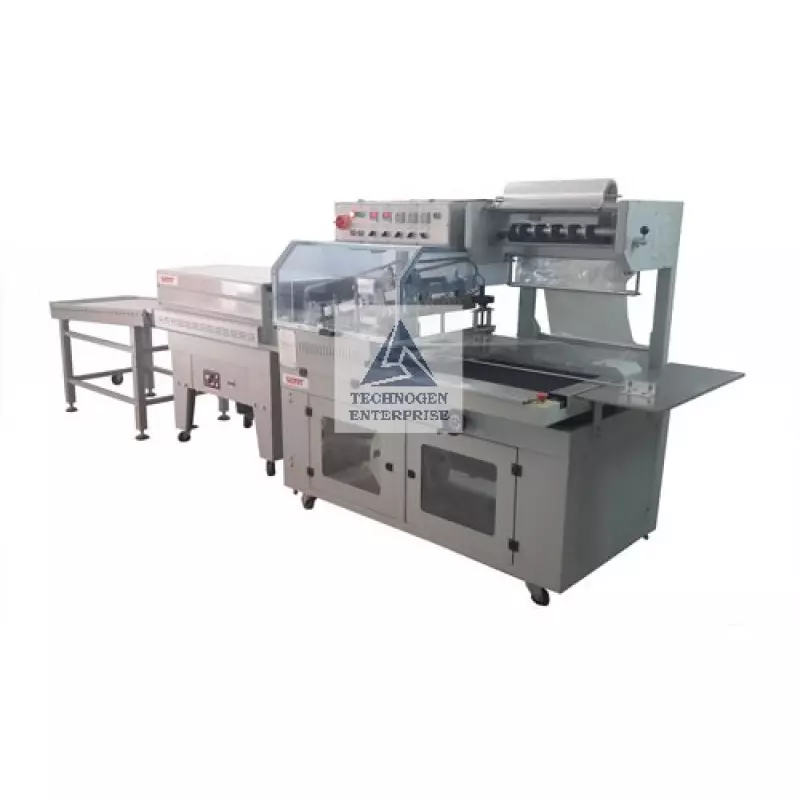

Automatic L Sealing Machine Details
Looking for a reliable and efficient Automatic L Sealing Machine? Technogen Enterprise in Ahmedabad,Gujarat,India provides high-quality machines that cater to the needs of various industries such as food, pharmaceuticals, cosmetics, and more. Discover how our machine can help you streamline your production process while upholding quality.
Technogen Enterprise is pioneer manufacturer, exporter and supplier of range of Automatic L Sealing Machine. This automatic L-bar Sealing shrink wrap machine uses a belt-to-belt transfer system together with a synchronized film advance to transfer product from the in-feed belt into the L-bar sealing area. This automatic L- bar sealer is a production sealing machine capable of speeds up to 25 packages per minute – depending on package size and configuration of product.
Salient features:
- Compact & GMP standard.
- Hot Knife Sealing system with center sealing
- Multi pin perforator wheel for air evacuation
- Teflon coated sealing blade
- Film rack-cradle roller style of film cores and shafts for perfection of unwinding.
- Motorized drive for film unwinding.
- State of the Art Temperature controller & can controlled upto 200 degree
- Easy adjustment for inline product feed with hand wheel movement.
- Digital temperature controller with PID function for accuracy.
- Safety shut down switch.
- Able to pack single or multiple packages.
- Horizontal and vertical photocell for package detection.
- Seal head height-max. 110mm.
- Outfitted with emergency button for safety concern.
Technical Specification:
| MACHINE NAME | AUTOMATIC L-SEALING MACHINE |
| MODEL | TGLS-20 |
| Speed | 10 to 25 Pack per minute depending upon shape of the product. |
| Max sealing size L + H (mm) | 500mm; Height :< 110mm |
| Max sealing size W+H (mm) | 450mm; Height :< 110mm |
| Conveyor motor | 90w 220v (each conv.) |
| Roll unwinding motor | 60w 220v |
| Scrap winding motor | 15w 220v |
| Power (KW) | 2.5 |
| Max Roll Dimension | 520 (L) X 300 (D) mm? |
| Max. Sealing Size | 500(L) x 450 (W) mm |
| Working Height | 830mm + / – 30mm |
| Conveyor Belt width | 370mm |
| Machine Dimension | 1600(L) x 845(W) x 1370(H) mm |
| Power Supply | Single Phase 220V/50HZ other (Optional) |
| Temperature Control | Up to 200 degrees Adjustable with PID control |
| Air Pressure requirement | 7 bars |
| Tunnel Specification | |
| Tunnel Dimension | 914 mm long |
| Power Supply | 440 V, 3 PH, 50 HZ |
| Tunnel Speed | 0 To 8 Mtr/Minute Variable A. C. Drive |
| Conveyor | Mild Steel Rod |
| Working Height | 750 mm |
| Structure | M.S. sheet with powder coated finish |
| Temperature Controller | 0 – 180? C (Variable) Digital with J Type Sensor |
Applicable industries:
- Food
- Pharmaceuticals,
- Nutraceuticals
- Chemicals,
- Cosmetics
