Description

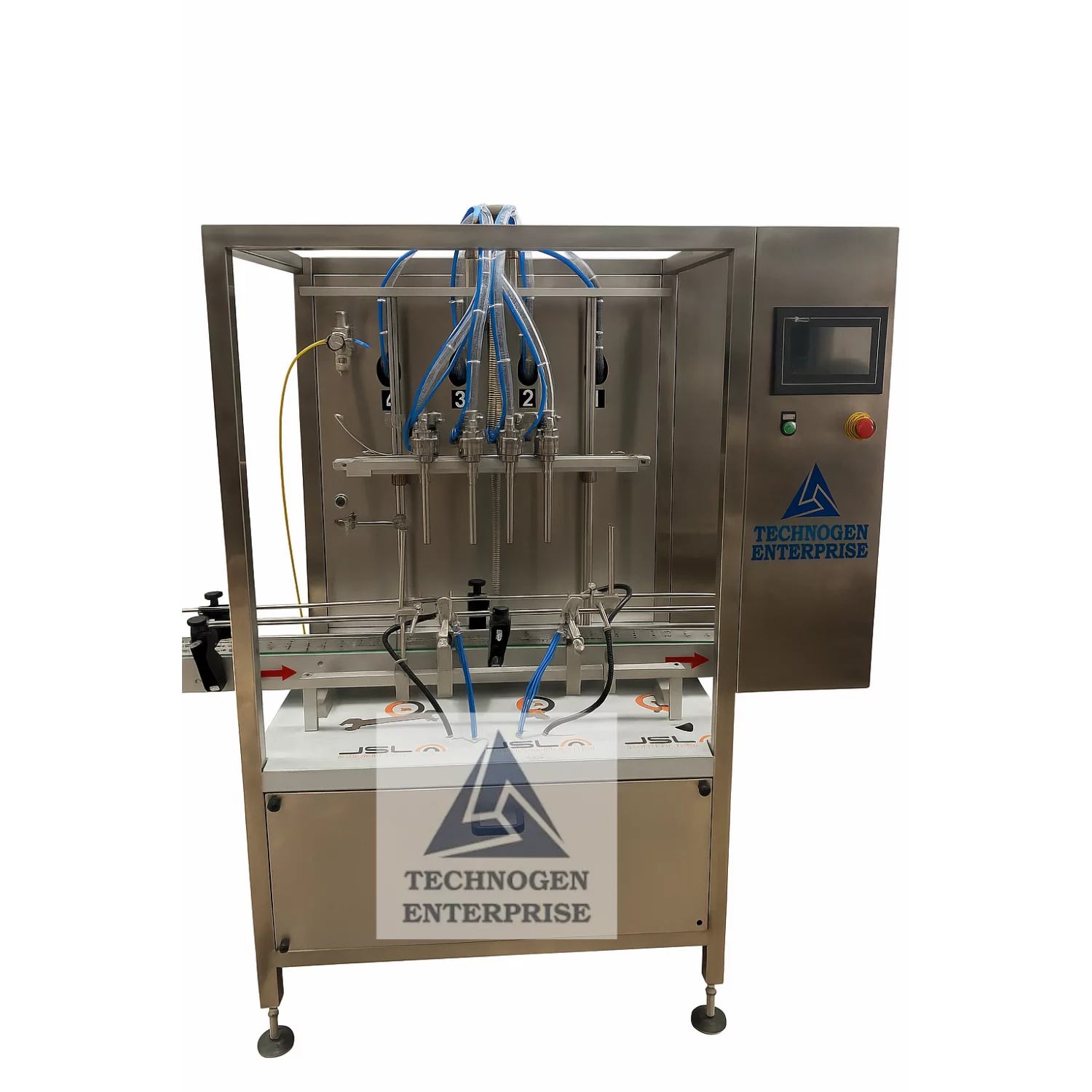

Automatic Servo Driven Gear Pump Type Bottle Liquid Filling Machine Details
Technogen Enterprise is manufacturer , supplier & Exporter of High Quality Automatic Servo Driven Gear Pump Type Bottle Liquid Filling Machine which is designed to fill variety of liquid in round or flat bottles.This machine use Dive-in nozzles in order to fill foam based liquid. The design of machine is modular so that number of heads can be added according to output requirement of the production line. Machine is avilable in 4-6-8 head configuration. The machine can fill wide variety of liquid like oil , beverage , Honey so applicable for wide variety of industries.
The Automatic Servo Driven Gear Pump Type Bottle Liquid Filling Machine uses Servo Driven Gear pumps for accurate metering of liquid and accurate metering / filling achived through revolutions of the pump controlled through Servo motor. Fill Volume is regulated by Varying the servo motor’s revoulation per minute (RPM). The Automatic Servo Driven Gear Pump Type Bottle Liquid Filling Machine is the ideal solution for conductive and non-conductive liquids regardless its foaminess or viscosity.
The Main Highlight of the Automatic Servo Driven Gear Pump Type Bottle Liquid Filling Machine is that “Fill volume setting directly from the Human Machine interface” , “diving nozzle” as well as “No Bottle – No Fill” System .
SALIENT FEATURES:
- CGMP Model
- Modular & Rugged Construction
- Machine body , door is fabricated using Stainless Steel Material
- All contact part with liquid are made from AISI 316L / Silicon / PTFE.
- “No Bottle – No Fill” saves valuable liquid & down time for cleaning.
- Indivudal Servo motor based gear pump for each filling head for accurate metering of the liquid.
- Tool less adjustable conveyor guide rails to accommodate with different products
- Diving Nozzle to reduce bubbling of foamy liquids.
- Servo Motor driven Centrifugal pumps.
- Fill volume setting through Human Machine Interface (HMI).
- An inbuilt PLC and Touch Screen HMI for efficient operation of the machine
- Elite fill test facility for new liquid & receipe based setting.
- Recipe based operation.
- Machine can fill 10ml to 1000ml without any changeover.
- Filling accuracy better than +2%
- Designed for easy change-over and cleaning.
- Elegant and easy reach control panel for total control and operation.
- Pneumatically controlled Bottle Stoppers during filling.
- Variable Frequency drive for Speed Variation.
- High Precision Manufactured Pumps to achieve high accuracy in Fill Size and Drip Proof Performance.
- Machine equipped with superior gear box and motor.
TECHNICAL SPECIFICATION:
| Model | TGLF-50SG | TGLF-80SG | TGLF-100SG |
| No of Filling Head | 4 HEAD | 6 HEAD | 8 head |
| Output | 40 to 50 Bottle per minute for 100 ml Filling | 80 to 90 Bottle per minute for 100 ml Filling | 100 to 110 Bottle per minute for 100 ml Filling |
| Power Consumption | 1.5 KW | 2 KW | 2.5 KW |
| Machine operating Direction | Left to Right | ||
| Filling technology | Servo Motor Based Metering | ||
| Bottle holding | Though Starwheel or Punematic stopper | ||
| Filling Accuracy | ±2 % depending upon the liquid properties | ||
| Filling Range | 100 ml to 1000 ml | ||
| Bottle Diameter | 16 mm to 100 mm | ||
| Bottle Height | Up to 200 mm | ||
| Power requirement | 440v 3 Phase 50Hz 4 Wire System | ||
ADD ON FEATURES:
- Toughened Glass / Poly carbonate / Acrylic Safety Cabinet with Door interlock
- Turn Table.
- 21CFRPART-11 complaint.
