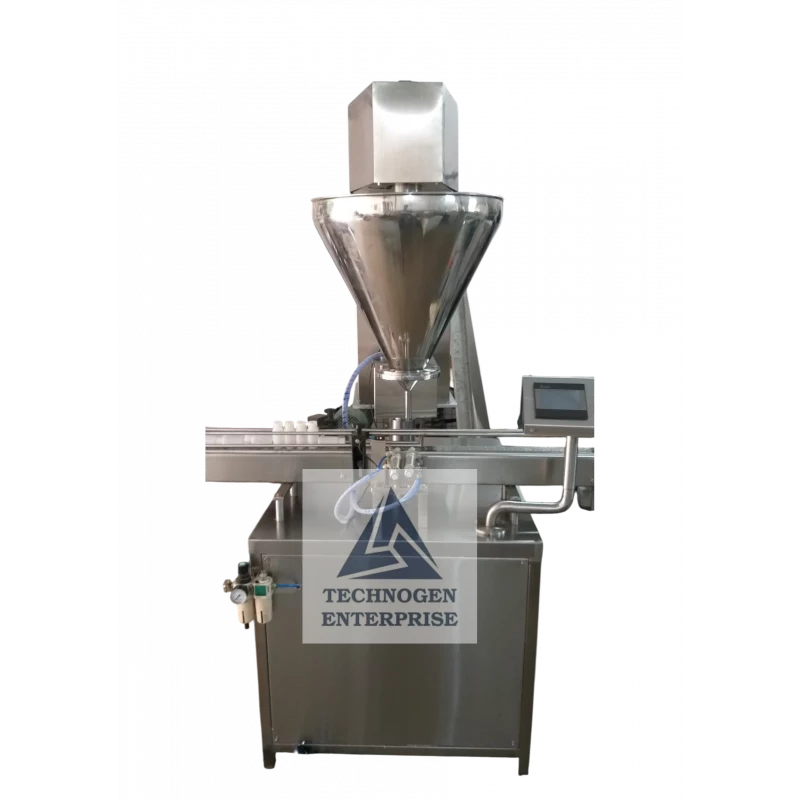

Automatic Single Head Auger Powder Filling Machine

The Automatic Single Head Auger Powder Filling Machine from Technogen Enterprise is the perfect solution for your powder filling needs. With its efficient and reliable design, this machine can provide a high-speed filling process with great accuracy and precision. Get all the advantages of a single head auger filler machine that would otherwise be impossible to find in other filling machines.

With the constant innovation in the domain of Auger Filling Equipment, we have introduced a wide range of Auger filler models to cater the increasing customer need for filling the various powder. Technogen Enterprise is manufacturer, supplier & exporter of state of art Automatic Single Head Auger Powder filling machine Model TGAPF-30 in Ahmedabad, Gujarat, India. This is an online model with a bottle feeding conveyor for filling of powder, granules etc. & can be interlinked with upstream and downstream machine for packaging.

Automatic Single head Auger powder Filler is available for sales to the various industries, likewise Food, Pharmaceuticals, Chemicals, Cosmetics & others at competitive price. The machine can deliver production speed up to 30 Bottle per minute. The Machine filling range is 5 GMS and 1000 GMS filling. It is used to fill powders, dry powders & micro granules.

Automatic Single Head Auger powder filling machine is equipped with state of art the No Bottle–No Fill mechanism to avoid the wastage of powder. Robust construction of the Machine make sure the long trouble free production and contact parts are made using Stainless steel 316L material.

This Automatic Auger powder filling machine has bottle conveyor, servo filling head with stirrer / agitator. Bottle holding under powder filling head is done with the help of star wheel which ensures the elimination of any pneumatic thus result in to saving of costly utility. Auger screw rotation is controlled through high powered Servo Motor. Servo motor is controlled using Servo driver and PLC. The Filling Material is metered through controlling the revolution of the Auger screw.

SALIENT FEATURES:

• CGMP Model
• Complete validation support through well-defined IQ OQ DQ Document
• Contact parts with powder are in AISI 316L
• Machine body and frame made using AISI 304 and top plate is manufactured from mild steel with AISI 304 cladding.
• Works on Auger metric principle with mechanism for precise operation
• Weight variation: Less than +/- 2.0% subject to the powder nature, fill weight & speed.
• least change parts, hence quick changeover.
• No Change Part need for change in bottle height
• Virtually no powder loss
• Variable speed for slat conveyor because of sensor less variable frequency drive.
• No dripping–drip control mechanism to control dripping after completion of dosing.
• Lower cost of production
• Simple operation–easy to use & maintain
• maintenance free machine
• No Bottle–No Fill Mechanism- to avoid wastage of medicament in the absence of a bottle.

 TECHNICAL SPECIFICATION:

OPTIONAL ITEMS:

• Dust Extraction System
• Acrylic Safety Cabinet.
• Non Free flow Powder Feeding System.
• PLC – HMI Interface with Audit trail facility
