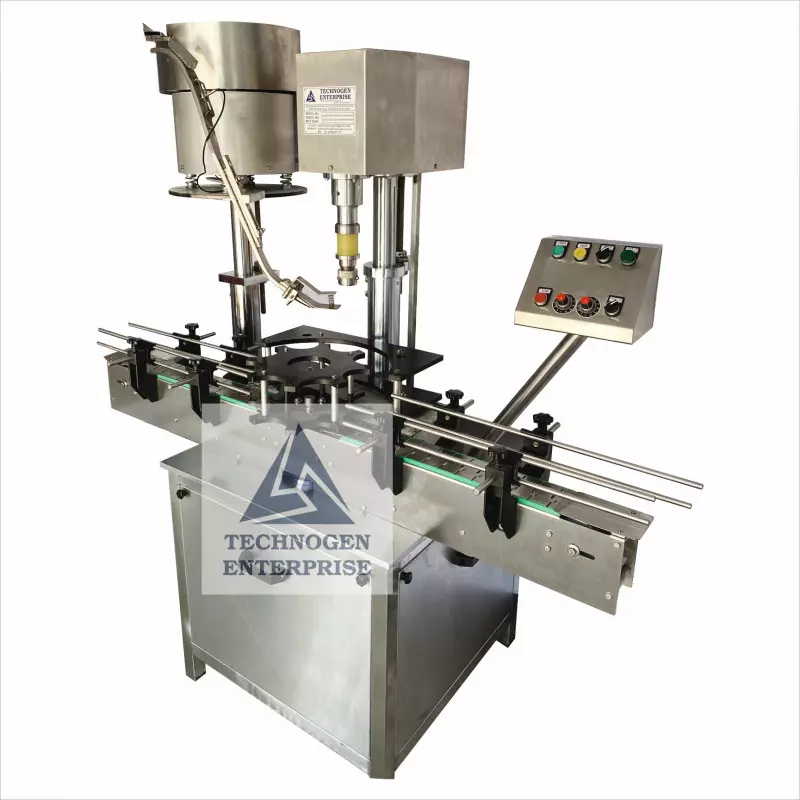

Automatic Single Head Crown Capping Machine Details
Introducing the Technogen Enterprise Superior Automatic Single Head Crown Capping Machine – the ultimate solution for efficient and precise crown corking of bottles. As a leading manufacturer, supplier, and exporter, we take pride in delivering high-quality equipment to various industries, including beer, carbonated beverages, sparkling mineral water, and fermenting wine.
Our state-of-the-art Crown Bottle Capper is meticulously designed to ensure seamless operation and optimal performance. With a production speed ranging from 35 to 40 bottles per minute, it guarantees exceptional productivity on modern packaging lines. Experience top-notch features integrated into the machine for enhanced usability and efficiency, meeting the demands of the most discerning industries.
At Technogen Enterprise, we understand the importance of superior technology and reliability. That’s why our Automatic Single Head Crown Capping Machine stands out from the competition.
Choose Technogen Enterprise for your crown corking needs and benefit from our cutting-edge equipment. Elevate your production line with our Superior Automatic Single Head Crown Capping Machine and experience the pinnacle of efficiency, reliability, and quality. Contact us now to explore how our crown capping solution can revolutionize your bottling operations.
SALIENT FEATURE:
Crown Capper comes with the following inbuilt features:
- Compact & Modular Design.
- Machine metallurgy is a stainless steel 304 material.
- Machine body, Door, Crown Capping head is made from SS 304 Material.
- exact positive bottle handling mechanism.
- Synchronized variable speed control through Variable Frequency drive.
- Quick and Easy Changeover.
- Stainless Steel Slat conveyor for Bottle.
- Star wheel & Corresponding back guide set is made of superior UHMW / Delrin material for long-lasting performance.
- Single motor synchronizes conveyor, star wheels and platform turret.
- Photo electric sensor stops the machine if no Crown cap in the delivery Shute.
- Crown Capping head for perfect sealing.
- Crown Cap is storing and sorting done using a state-of-the-art Vibrator bowl feeder.
- 6 Digit Counter for counting.
Safety Features of crown cap sealing machine:
- CGMP Model
- Star wheel Safety Clutch system to stop the machine
- No Bottle–No Crown Cap System.
- Automatic Vibrator on / off system
- Emergency Applied–Machine stop
Technical Specification:
|
Machine Name |
Automatic Single Head Crown Capping machine |
| Model |
TGCROWN-50 |
| Direction | Left to Right |
| Automation Grade | Automatic |
| Machine Usage application | Apply crown Cap on the Glass, Plastic and Pet Bottle such as bottles of beer, carbonated beverages, sparkling mineral water, and fermenting wine. |
| Type of Crown Capping | Shut pick up (single cam control pick up and release of Crown cap) |
| Brand | Technogen Enterprise |
| Machine production Speed | Up to 30 to 40 Bottle per minute depending upon the diameter of the bottle |
| Speed Variation | Through Variable Frequency Drive |
| Machine Finish | Stainless Steel Matt Finish |
| Bottle diameter | 22 mm to 100 mm max |
| Bottle height | 55 mm to 150 mm max |
| Crown Caps
diameter |
22 mm to 65 mm diameter (with the help of change part) |
| Crown Caps
Height |
15 mm to 18 mm |
| No of Crown Capping Head | 1 head |
| Type of Crown Capping head | Crown corking head |
| Power Consumption | 1 HP for Main Drive 0.25 HP for Cap feeding Unit |
| Type of Cap feeder | Vibrator feeder |
| Electrical Connection | 440 V ,3 Phase (4 Wire System ) 50 HZ |
| Control Panel | Bottom Pedant type Machine mounted |
| Production Counter | Inbuilt |
| Height of Conveyor from Datum | Adjustable from 800 to 850 mm |
| Dimension (L X W X H) mm | 1830 x 850 x 1500 |
| Change part | Required if Bottle and Cap Changes |
| Net Weight of Machine (KG) | 250 KG |
| Gross Weight of Machine (KG) | 450 KG |
| Country of origin | Made in India |
Add-on Feature:
- PLC – HMI Interface
- Automatic Head Up and Down System
- Toughened Glass / Polycarbonate / Acrylic Safety Cabinet for Machine.
