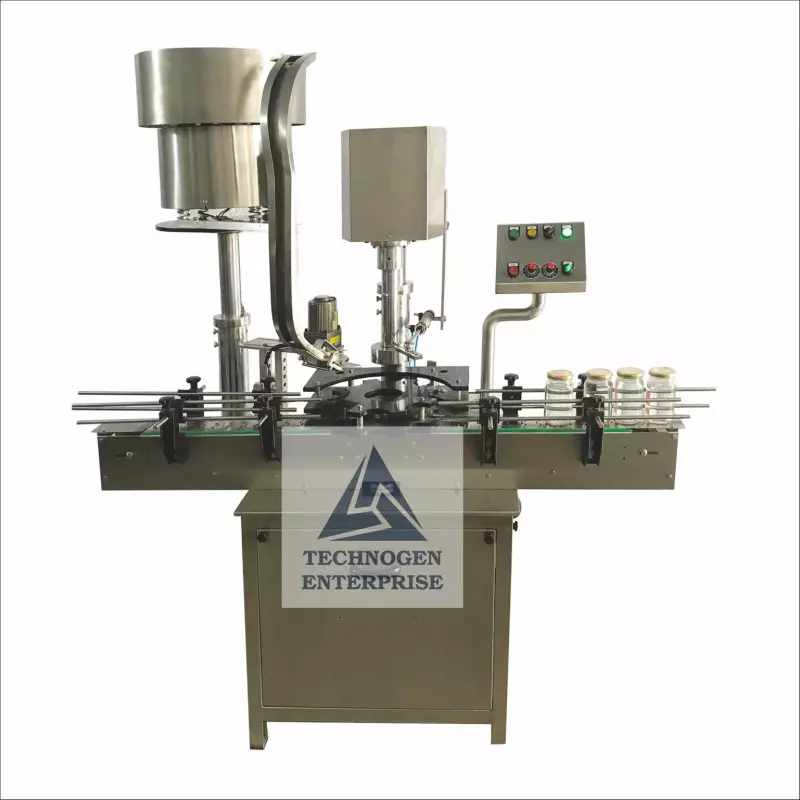

Automatic Single Head Lug Capping Machine Details
Technogen Enterprise is manufacturer, supplier and exporter of advanced Automatic Single Head Lug capping machine Model TGLC-50 for food, Dairy, milk, Vinegar and pickle industries. This type of Lug Capping machine uses special cap feeder elevator as well as Cap feeder vibrator for Storing and feeing of lug cap. The most characteristic feature of machine is “No Bottle – No Cap system” & “pneumatic – Mechanical magnetic hysteresis clutch-based Lug capping head” which assure the uniform torque application during process of capping.
Salient feature:
- Compact Model
- Parts coming in contact with bottle / Lug cap are manufactured from fine grade of Stainless Steel.
- Single motor synchronizes conveyor, star wheel system & Capping turret.
- Specially design pneumatic – Mechanical magnetic hysteresis clutch-based lug capping head for torque adjustment.
- Cap feeding is through cap feeder elevator & Cap feeder vibrator
- Fast format Changeover from one size of bottles to other Bottle size.
Technical Specification:
| Direction | Left To Right. |
| Type of Capping | Lug capping |
| Cap pick on Bottle | Shut pick up |
| Power Consumption | 1.5 HP For Main Drive |
| Output | 30 to 40 Bottle per minute depending upon the bottle diameter & Cap Size |
| No of capping Head | Single |
| Power Requirement | 230 Volts, 1 Phase 50 Hz. |
| Height of Conveyor | Adjustable from 800 To 850 MM |
| Bottle Diameter | 22 mm to 100 mm |
| Height | 15 mm to 100 mm |
| Lug Caps (Diameter) | 22 to 84 mm |
| Dimensions | 1830 MM (L) X 875 MM (W) X 1450 MM (H) |
Interlock:
- No Bottle – No Cap System.
- Star wheel Safety Clutch system to stop the machine
- Automatic Orientator on/ off system
- Emergency – Machine stop
Add on Feature:
- PLC – HMI Interface
- Toughened Glass, Poly Carbonate or Acrylic Safety Cabinet with door interlock.
