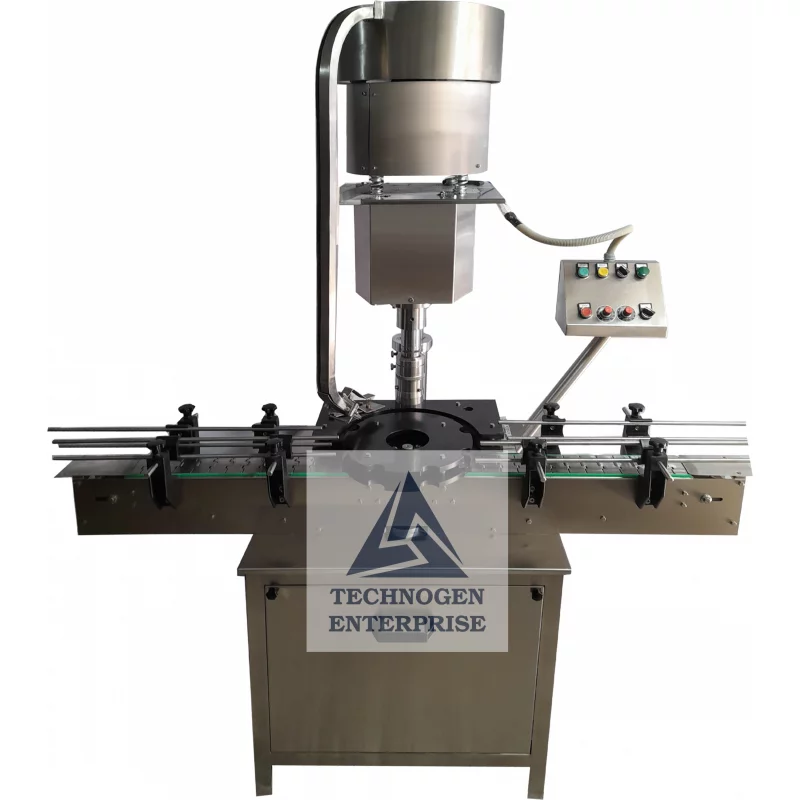

Automatic Single Head Screw Capping Machine Details
Technogen Enterprise based in Ahmedabad, Gujarat, India is manufacturer, Supplier & Exporter of Automatic Single Head Screw Capping Machine Model TGSC-50 employed in an array of industries.
It can deliver a production speed of 50 bottles per minute. The Automatic Single Head Screw Capping Machine is equipped with a singular feature “No Bottle–No Cap” arrangement.
SALIENT FEATURE:
- Covenant Model.
- Steady and perfect container handling
- Synchronized variable speed control
- Fast product changeovers
- Stainless Steel Slat conveyor
- Star wheel & corresponding back guide set is produced from superior UHMW / Delrin material.
- Machine architecture is SS 304 material.
- Single motor synchronizes conveyor, star wheels and platform turret.
- A special photo electric sensor stops the machine in case no screw cap is in the delivery chute.
- Especially design Magnetic hysteresis Screw Capping head with mechanical torque setting provision.
- Range of choice for Screw Cap Feeding provision such as vibratory feeder, mechanical orientator or Water fall elevator.
- Precise counting arrangement helps to manage the production.
Interlock:
- CGMP Model
- Safety Clutch at Star wheel to stop the machine
- No Bottle–No Cap arrangement.
- Automatic Orientator on/ off facility
- Emergency–Machine stop
Technical Specification:
| Direction | Left To Right. |
| Cap pick on container | Shut pick up |
| Machine Speed / Output | 40 -50 bottle / Minute depending upon the diameter and height of the container |
| Number of Capping Head / Machine | Single |
| Bottle Diameter Range | 22 mm to 100 mm |
| Bottle Height Range | 15 mm to 100 mm |
| Screw Caps | Diameter: 22 mm to 65 mm
Height: 15 mm to 18 mm |
| Power Consumption | 1 KW |
| Electrical Connection | 230 Volts, 1 Phase 50 Hz. |
| Height of Conveyor | Adjustable from 800 To 850 MM |
| Dimensions | 1830 MM (L) X 850 MM (W) X 1900 MM (H) |
| Net Weight | 350 KGS (Approx.) |
| Gross Weight | 500 KGS (Approx.) |
