Description

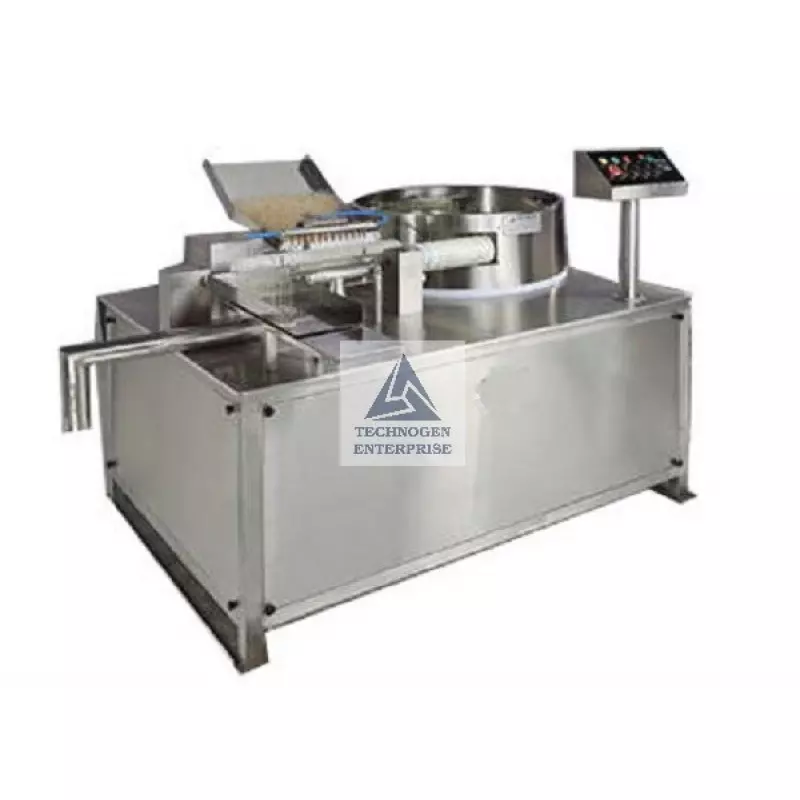

Automatic External Ampoule Washing Machine Details
We are manufacturer, supplier & Exporter of prime quality Automatic Rotary External Ampoule Washing Machine Model TGAW-250RE used in Pharmaceutical Industries. Machine is based on Rotary Continous motion principal and used to wash external surface of Ampoule. Machine has been equipped with 4 washing station.
In Sequence of operation of Automatic External Ampoule washing machine , Ampoules from the loading tray are correctly spaced with help of feed worm. Then Ampoule is received in rotating wheel for washing purpose.On product rotating wheel, there are two washing station. 1st washing station is Tap water station and in case of more dirt, you can use detergent wash as well.2nd washing system is purely a Tap water washing system. On final exist feed-worm, there are two washing station available. Which combine blowing dry air & also hot air in order to ensure no water droplet remain on outer surface of container.
Salient features:
- CGMP Model.
- Machine body is made from AISI 304 Material
- Main unit is drive through Worm gear box coupled with Gear motor
- Loading and unloading of the Ampoule through Tray System
- 4 stage external washing sequence.
- 2 NOS of SS 316L tank (50 Liter Capacity) with Horizontal Multistage Centrifugal Pump
- Variable Frequency Drive for Speed Regulation of the machine
Technical Specification:
| PARTICULAR | SPECIFICATION |
| Output | 1 ml to 5 ml Ampoule à 250 CPM depending upon the dirt to be washed |
| Suitability | 1 ml to 5 ml ampoule with change part |
| Tanks | 2 nos of SS-316 Tanks with 50 Liters Capacity |
| Loading & Unloading of the Ampoule | Tray |
| No of Horizontal Multistage Centrifugal Pump
with 3 phase induction motor |
2 Nos |
| Blower | 1 Nos |
| Heater block | 3 no of heaters and each rating 1 KW. |
| Dimension | 1450 (L) X 1400 (W) X 1450 (H) |
Add on Feature:
- PLC – HMI Interface.
- Detergent wash if more dirt
- Swiss Air heating system
