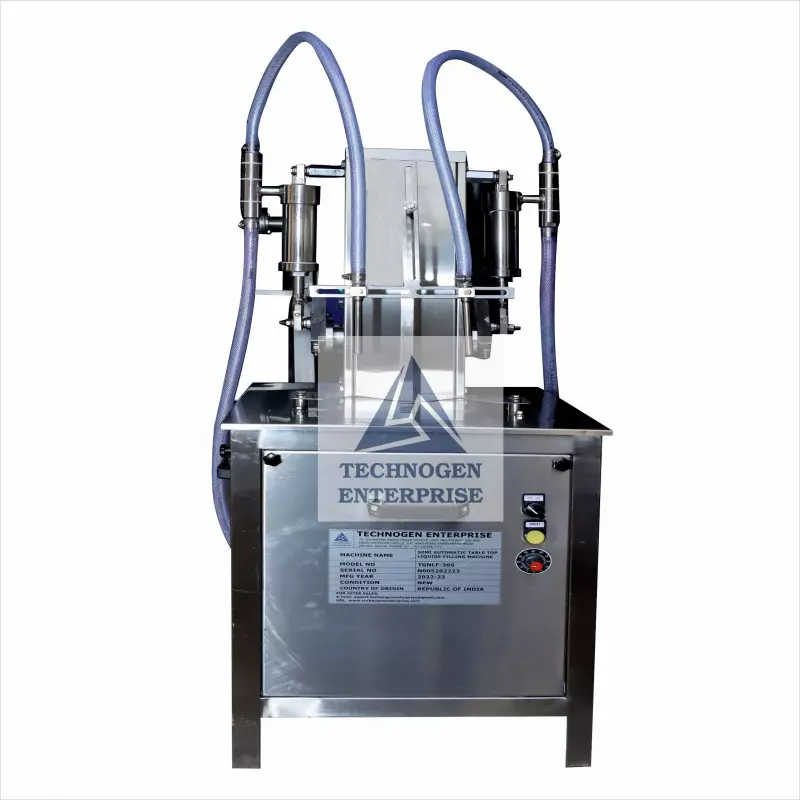

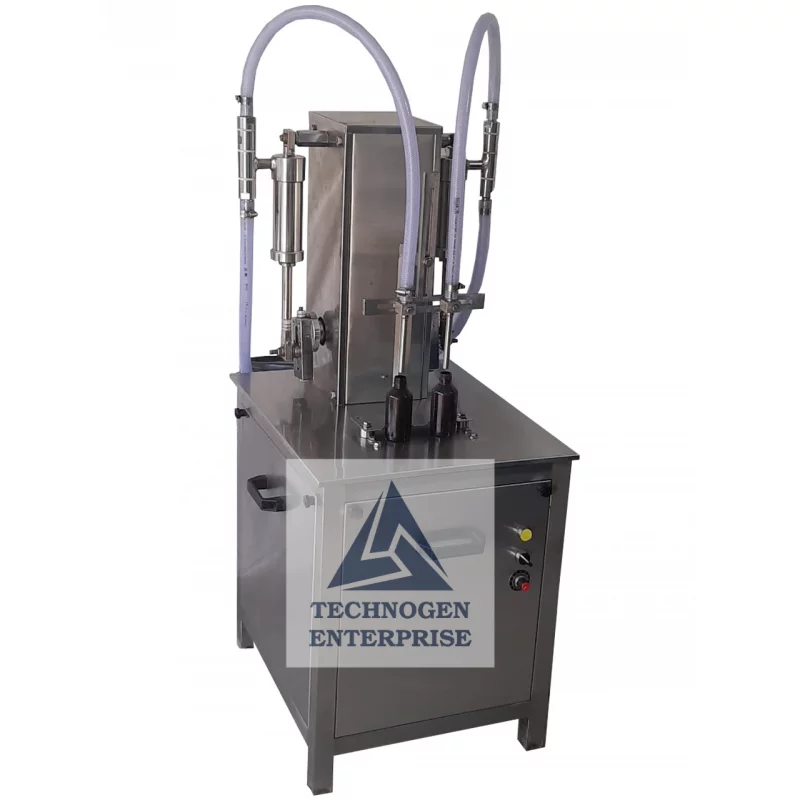

Semi Automatic Bottle Liquid Filling Machine

With our endeavor to manufacture the groundbreaking solution in the category of liquid filling machine, semi-automatic bottle liquid filling machine is suitable for the industries where production need is minimal, yet qualitative & precise filling can be achieved during the production. We are manufacturer, exporter and supplier of Semi-Automatic Bottle Liquid Filling Machine and it can deliver the production speed of 20 bottles per minute depending upon the factors likewise human skill, nature of liquids, Neck Diameter of vial / Bottle and Fill Volume.

Semi Automatic Bottle Liquid filling Machine is built using robust Stainless Steel material and doors are provided to simplify servicing of machine. This multipurpose Semi Automatic Liquid filling machine is mechanically driven & work on volumetric principle to fill the liquid inside the various shape, size of the bottle.

Metallurgy of the Semi Automatic Bottle Liquid filler is following the current good manufacturing practices where contact parts are manufactured from the Stainless Steel 316L Material. Machine comes with a double head for the filling and filling range is from 5 ml to 1000 ml.

SALIENT FEATURE:

• Compact Model
• CGMP Model
• Contacts parts with liquid are made using AISI 316L
• Machine frame construction is of AISI 304 & imparts vibration free operation.
• The stroke of Nozzle Holder & height of the Nozzles is adjustable for achieving smooth entry and exit of Nozzles inside the neck of Bottles and avoids splash / spillage of liquid or dripping at sides.
• Spring loaded Nozzle holder result in to no breakage of Bottle even in the event centering is not done correctly
• Wide range of choice of Syringes is available to fill from 5 ml to 1000 ml.
• Designed Non-Return valve to achieve drip proof filling result & avoid messy Platform and Bottles.

TECHNICAL SPECIFICATION:
