Description

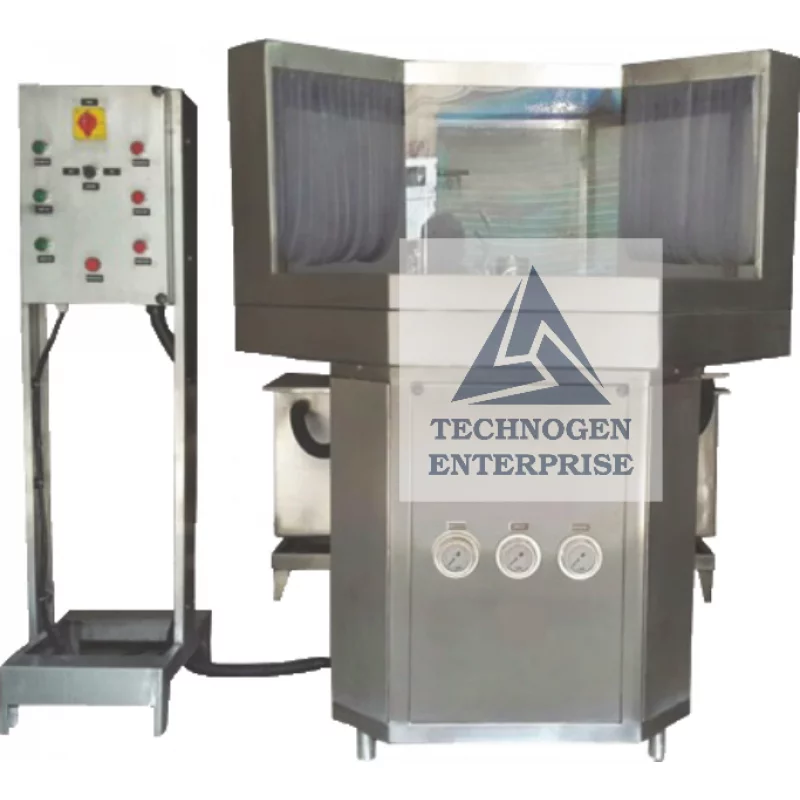

Semi Automatic Rotary Bottle Washing Machine Details
We are manufacturer, exporter and supplier of compact & Highly Efficient Semi Automatic Rotary bottle washing machine for washing of glass & plastic bottles. This machine is best suitable for lower production output. The machine is Rotary intermittent motion with Geneva mechanism and operator requires manual loading and unloading of bottles in pocket while executing washing. This Machine washes internal & external surface of bottles through water and Air cycles.
Salient Feature:
- Bottle indexing system is based on Geneva drive mechanism.
- Suitable for various types of Round and Flat Bottles.
- Easy & Smooth Operation.
- Four inner, one outer and one air wash
- Customized Washing Sequence
- Stationary nozzles eliminate contamination of water cycles & avoid chipping of bottle necks.
- High Pressure spraying Nozzles ensures Perfect Wash of Bottles.
- Easy Manual loading and unloading with two rows.
- Individual solenoid valve for each washing sequence
- Higher capacity centrifugal pumps to wash bigger bottles (500 & ml)
- Pumps and tanks are mounted on portable stand for easy maintenance.
- Water Re-cycling arrangements is possible as per customer’s requirement.
WASHING SEQUENCE:
| Type of Washing Mediums | Washing Sequence |
| FRESH WATER | First wash |
| Third wash | |
| Outside wash | |
| HOT DETERGENT | Second wash |
| DM. OR DI WATER | Fourth wash |
TECHNICAL SPECIFICATION:
| MODEL NO | TGBW-100S |
| Diameter of Bottle | 24 mm to 100 mm |
| Neck Diameter of Bottle | 20 mm to 40 mm |
| Output | 60 to 100 bottle per minute depending upon the human efficiency |
| Height of Bottle | Up to 290 mm |
| Motor for main drive | 1/2 HP / 415 V/3 Phase / 50 Hz /1000 RPM |
| Electric Heater Tank | 3 KW |
| Power Requirement | 5 KW |
| Dimensions | 1650 mm L X 1600 mm W X 1300 mm H |
