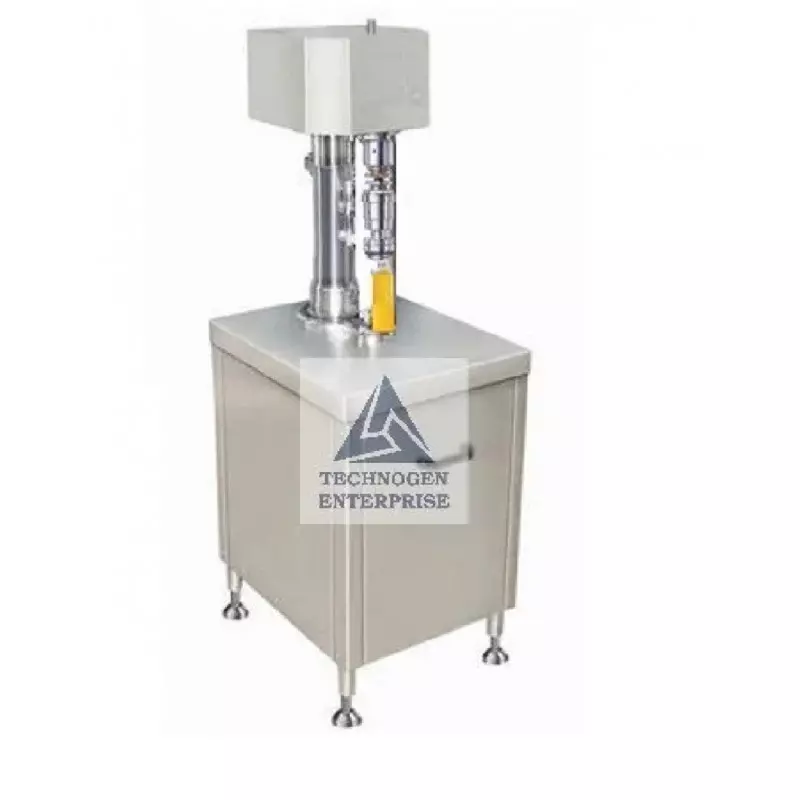

Semi Automatic Screw Capping Machine Details
Avail best quality Semi Automatic Screw Capping Machine from Technogen Enterprise who is quality manufacturer, supplier & exporter of range of Screw Capping Machine. Semi Automatic Screw Capping Machine is built with heavy duty body for long lasting operation and is perfect solution for start up industries where production requirement is low but qualitative screw capping is of prime importance.
This capping Machine can deliver the output around 20 to 25 bottle per minute depending upon the human efficiency and machine can work with variety shape of bottle like round, flat, square, triangular without change part for change in bottle size. Screw Capping head is integrated with clutch system and torque adjustment features.
Salient Features:
- Compact & multipurpose unit.
- Heavy duty body is built using Stainless Steel Material.
- Doors are provided to facilitate the servicing of machine
- Bottle & Screw Cap loading is manual.
- Screw Capping head with mechanically torque adjustment facility.
- Motorized Screw capping head with clutch system
- Adjustable bottle height gauge provided for easy & quick setting.
- Speed Variation through Variable Frequency drive.
- Easy operating interface as operating panel mounted at front side of machine.
- No or Minimum change parts require for different container diameter.
- Low Power consumption
- Maintenance free Machine
Technical specification:
| Model | TGSC -20S |
| Type of Capping | Screw Type Capping on Bottle |
| Output/ Minute | 20 to 25 bottle per minute depending upon Operator efficiency |
| Number of Screw Capping head | 1 Nos. |
| Power Consumption (KW) | 0.75 KW |
| Electrical Connection | 230 V, Single phase, 50 HZ |
| Screw Cap Diameter (mm) | 18 mm to 52 mm (With Change part) |
| Container Diameter (mm) | Ø 22 mm to Ø 100 mm |
| Container Height (mm) | 58 mm to 240 mm |
| Overall Dimension | 1250 mm (L) x 750 mm (W) x 1400 (H) Approx. |
